Product Description

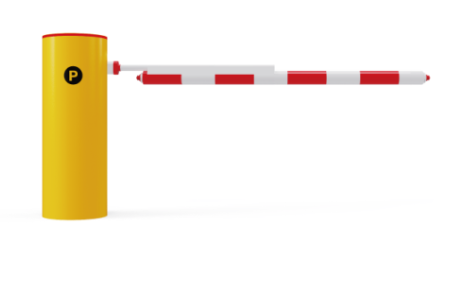

Product Name Barrier
Product Model : ST-071
Product Size : 425×345c×985(mm)
Working Temperature : -352~+65℃
Power Supply : DC24V/AC110V/220V 50/60Hz
Running Speed : 1.25-35/2.85~65
Rated Power : 150W
Driving Method : DC Brushless Motor
Humidity : <90%
Remote Control Distance : <100m (Open & Sunny Weather)
Protection Class : IP54
Motor No-load Speed : 1850r/min
Adaptable Boom Length : 3m~6m

Function

1) The speed can be adjusted from 2.5s to 6s
2) Arm direction can be quickly interchanged
3) Open the barrier gate by motor wheel when power off ,automatically reset after power on4) Curved crank arm three- link movement structure, the operation is stable
5) Wireless remote control control open/close
6) Auto reverse function (force adjustable)
7) Infrared photocells connector is available
8) Loop detector connector is available. 9) Well-integrated with car parking system equipment,with wire control(must be switch signal)
10) Connector for traffic light(AC220V,power less than 40W)
11) Offering dry contact signal for car parking system(COM,NC,NO)
12) Auto-delay when closing(adjustable)
13) RS485 or CAN network communication interface (no need to install module)
14) Counting interface
15) 24V backup battery interface (Can be charged by using solar energy)
16) Arm open when power off ( add backup battery) (Optional)
17) Arm swing out function,when the vehicle hit the barrier gate, the arm (80*45mm) canbeswingout to avoid further damage on vehicle and machine core. 18) Anti-collision alarm device
